          Product Model: BAC2004-A9(Din-Rail Mount)

          Function Description:

          BAC2004-A9 is a high-capacity hardware Gateway with 2ethernets and 4serial ports. Matching software is X2BACnet . X means all kinds of protocols from different manufacturer. These protocols(X) can be converted by BACnet hardware Gateway into standard BACnetIP /BACnetMSTP. Configured project files by X2BACnet are uploaded to hardware gateway, users can read & write point informations from different manufacturer by BACnet system.


          Application Field:

          BACnet Gateway can convert all kinds of protocols into BACnet IP/MSTP. BACnet Gateway have solved the problem that some large BA Company can’t connect any uncommon devices. So BACnet system can control uncommon devices by BACnet gateway.

          BA Controls:

          Honeywell(EBI、Niagara), Siemens(Insight), Johnson Controls( Metasys), Schneider Electric(TAC)、Delta(ORCAview)etc.

          Uncommon Devices:

          PLC、 Air conditioner、 Elevator、 fire control、light control、smart meter、water meter etc.


          Runtime environment:

          OS:Windows XP/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.

          Browser: IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.


          Register Type:

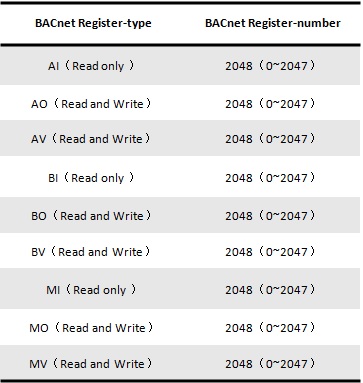

          The BACnet gateway  support the register type and the maximum number of points as follows.
          Note: the number of gateway register points is dynamically supported, and the total number of points should not exceed 2048 points (including virtual points).


           Software Features:

              -Green software and Free Installation;
              -Support 200+ protocols can be converted into BACnet IP server;
              -browser, set up and moniter by WEB;
              -Line convert、fetch bit 、Highbyte & Lobyte convert;
              -Internal variable can check device online & offline status;
              -9 Register types (AI、AO、AV、BI、BO、BV、MI、MO、MV);
              -Friendly software configuration tool,complete 2048 points in 20m;
              -new Protocol can be completed in 2 weeks;

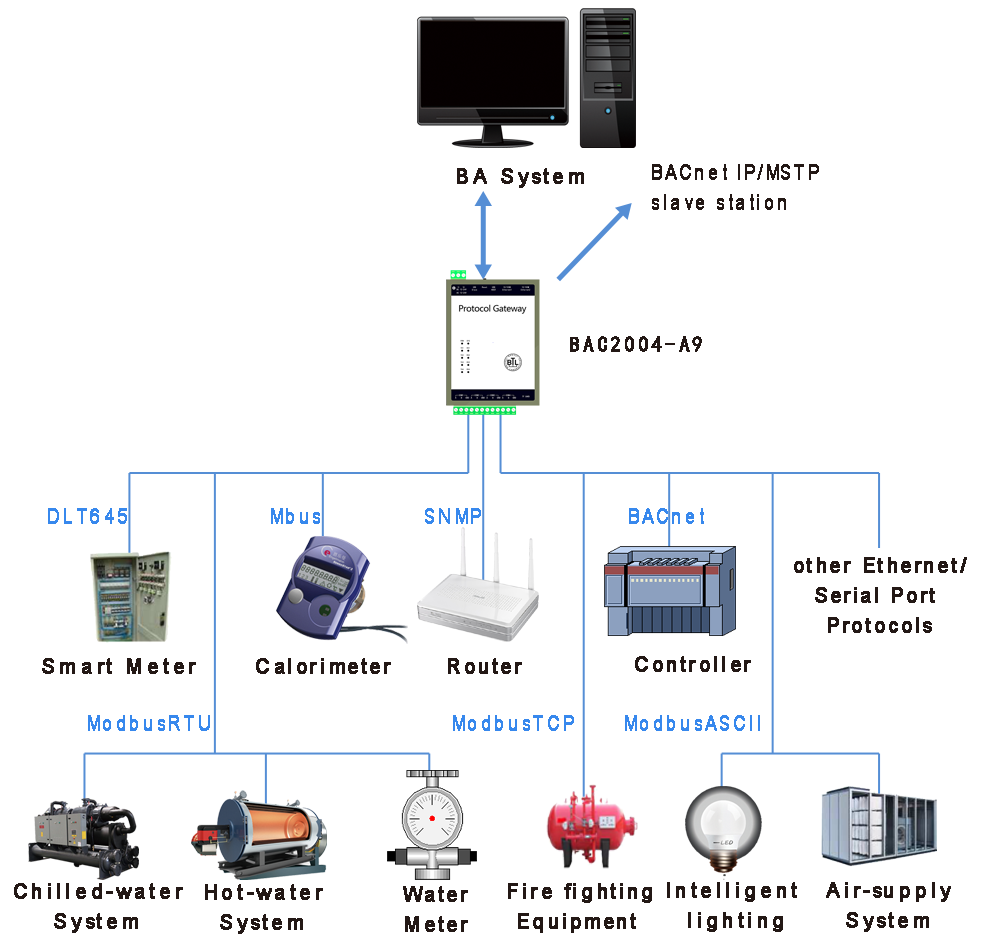

          Application Principle Diagram



          Product Size


 Download file list
Available Protocols List.pdf
2004-A9-Instruction for installation.pdf
X2BACnet-En.pdf(User Manual)
Sunfull BACnet Gateway_PICS.pdf

If you need to develop a non-standard protocol , please contact us.

If it is best to express the device to our company, the development cycle is usually 2 weeks.
