MOD2004-A9(High-Capacity)

          Product Model: MOD2004-A9(DIN-Rail Mount)

          Function Description

          X2Modbus is a hardware Gateway with 1ethernet and 2serial ports. Matching software is X2Modbus . X means all kinds of protocols from different manufacturer. These protocols(X) can be converted by Modbus hardware Gateway into standard Modbus. Configured project files by Modbus are uploaded to hardware gateway, users can read/write point informations from different manufacturer by Modbus system. Note that this gateway acquisition end and forward the Modbus register base address is from 1 (Base1).



          Application Field

          Modbus gateway MOD2004-A9 (2 ethernets 4 serial ports) supports multiple protocol transformations , For the solution of Citect、IFIX、RSVIEW、WINCC、Kingview、e-Control and other configuration software cannot connect the problems of some unusual control devices. For example, DDC、PLC central air conditioning、Precision air conditioning、elevator、fire lighting、control system electric、electric meter、water meter, etc .



          Runtime environment

          OSWindows XP/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.

          Browser IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.



          Register Type:

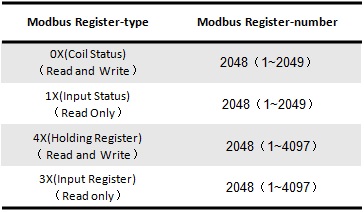

          Modbus Gateways supports Modbus RTU/TCP server , The register type and number of the supported registers are shown below
          Note: the number of gateway registers is dynamically supported, and 2048 points can be built for each register.




           Software Features

              -Green and free installation, support both Chinese and English;
              -Support 200+ protocols can be converted into ModbusRTU and ModbusTCP  server;
              -Support WEB browsing, viewing, setting, monitoring and control;
              -Support for linear transformation, location, and high and low byte conversion;
              -Support for internal variable functions,Support to view the device from online status;
              -Support 0X 1X 3X 4X four register types;
              -Configuration software X2Modbusconfiguration engineering is convenient,the 2048 points will be completed within 20 minutes;
              -Add a new private protocol to support Modbus, which can be completed within 2 weeks;

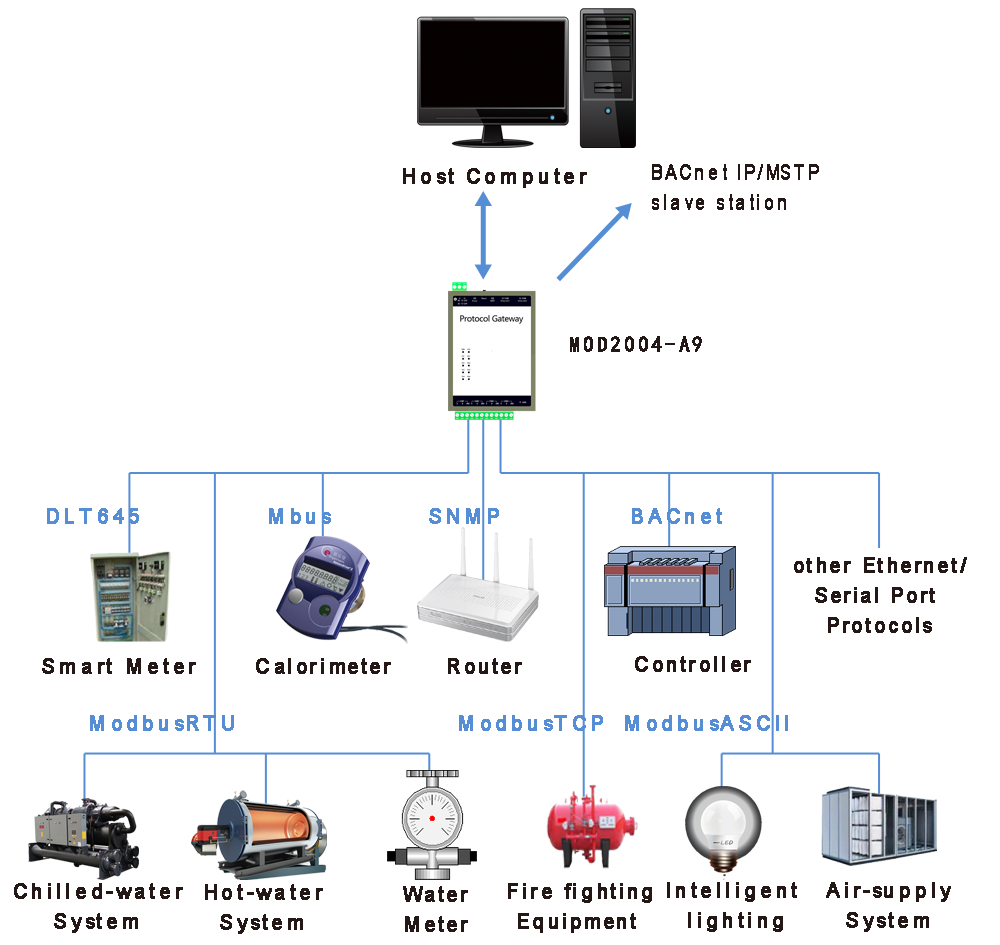

        Application Principle Diagram





            Product SizeDIN-Rail Mount



    Available Protocols List.pdf

If you need to develop a non-standard protocol , please contact us.

If it is best to express the device to our company, the development cycle is usually 2 weeks.

Tel:  +86-021-58776098

E-mail: support@opcmaster.com   sales@opcmaster.com
