IEC2004-ARM(1024 Points)

          Product Model: IEC2004-ARM(DIN-Rail Mount)

          Function Description:

          X2IEC104 is a protocol gateway, X means different communication protocols, and IEC104 is the ultimate support for IEC104 protocol. The user can configure according to the communication protocol of field devices, IEC104 protocol into standard. In the end PC simulation is correct, uploaded to the hardware protocol conversion gateway. Note that this acquisition terminal and the originator of the gateway to the IEC104 register based address is from the beginning of 0.


          Working principle:

          IEC104 gateway supports multiple protocol conversion, can solve PLC, air conditioner, elevator, fire control, lighting control system, electric meter, water meter of
different products, through the hardware gateway will be Modbus, BACnet and other various different protocol into IEC104 protocol, so that the IEC104 client configuration software can access the site through the X2IEC104 gateway equipment, implementation data acquisition, data monitoring, and remote reading scene temperature, and alarm status data.


          Runtime environment:

          OS:Windows XP/Win 7/Win8/Win10/Win Server 2003/Win Server2008/Win Vista etc.

          Browser: IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.

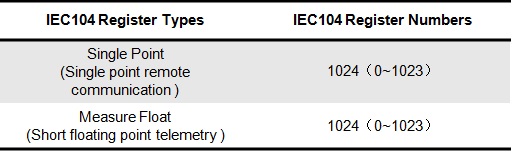

          Register Type
          Note: the gateway register number is dynamic support, each register can be built up 1024 points.

           Software Features:

              -Green and free installation, support both Chinese and English;
              -Support nearly 200 protocols convert to IEC104 server;
              -Support WEB browsing, viewing, setting, monitoring and control;
              -Support for linear transformation, location, and high and low byte conversion;
              -Support for internal variable functions,Support to view the device from online status;
              -Support 2 types of Regsiter:Single Point、Measure Float;
              -Friendly software configuration tool,complete 1024 points in 20m;
              -Add a new private protocol to support Modbus, which can be completed within 2 weeks;

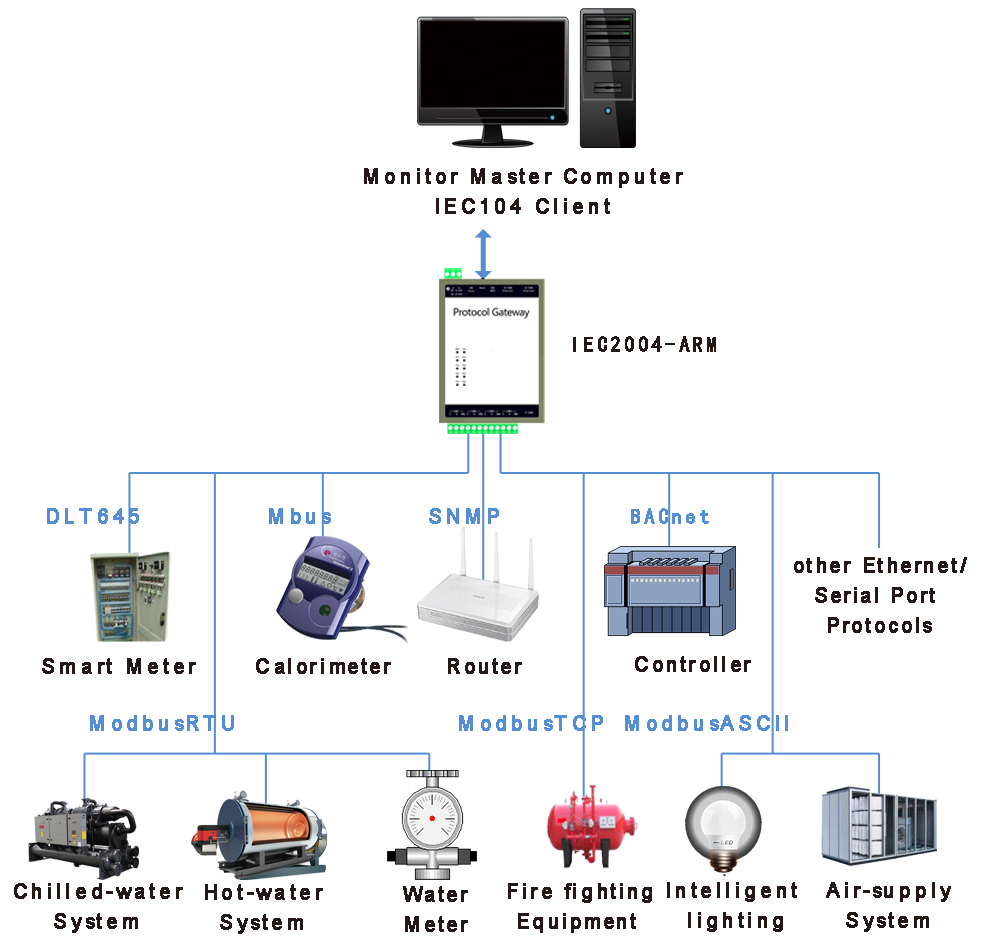

         Application Principle Diagram

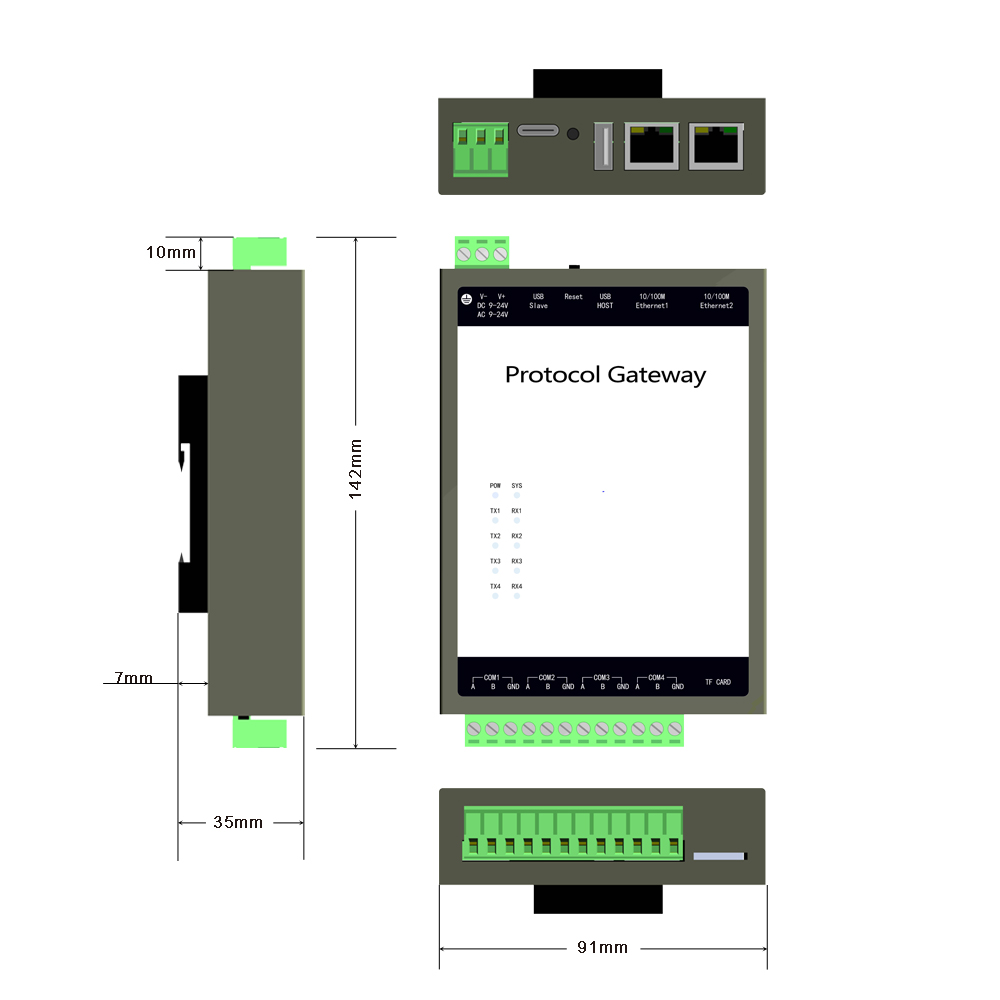

           Product Size:

IEC2004-ARM (Wall-Hanging /Guide Way)

    Available Protocols List.pdf

If you need to develop a non-standard protocol , please contact us.

If it is best to express the device to our company, the development cycle is usually 2 weeks.
