    PLC6462







          Product Model: PLC6462

          Overview

          PLC6462 uses the mainstream ARM kernel 32 bit microprocessor, Modbus RTU and BACnet MS/TP supports two protocols (choose one), can realize the rapid expansion of I/O module controller.



          Protocol specification

          RS485-1 port: the PLC download port. It supports Modbus RTU server and is easily integrated by the host computer. Multiple software simultaneous access is not supported.
          RS485-2 port: supporting Modbus RTU protocol and BACnetMSTP slave service, can quickly realize data acquisition and communication with the slave station equipment supporting Modbus RTU protocol.
           Please refer to the PLC user Manual for specific operation.



          Main Parameter



 Processor 32 bit
 Clock Frequency  72MHZ
 Memory  64KB flash, 20KB random access memory
 Power  DC/AC 24V
 Communication

 Modbus RTU(2.4k/4.8k/9.6k/19.2k)
 BACnet MS/TP(9.6k/19.2k/38.4k/76.8k)

 Digital Input  Support 24VDC <3A
 Digital Output  Support dry contact output
 Analog Input  12 bit resolution, support 0-10V, 0-20mA input
 Analog Output  10 bit resolution, support 0-10V, 0-20mA output





























         Model specification

 Product Model

BI/DI

BO/DO

AI

 AO

PLC

6

4

6

 2

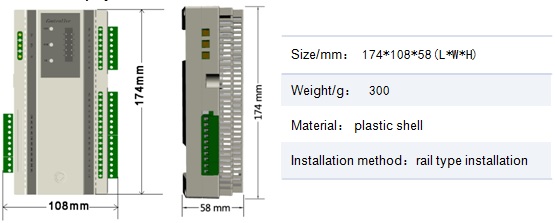

          Product display






          Correspondence diagram of controller wiring diagram



          PLC component and MODBUS protocol address

Register Type

Segment Type

 Register

 Register Address

Function Code

Y

Bit element

 Y0-Y377

 0001-0256

1,5,15

X

Bit element

X0-X377

1201-1456

1,5,15,2

M

Bit element

 M0-M2477

 2001-4048

1,5,15

SM

Bit element

 SM0-SM511

 4401-4912

1,5,15

M

Bit element

 M0-M2047

 2001-4048

1,5,15

T

Bit element

 T0-T255

 8001-8256

1,5,15

 C

Bit element

 C0-C255

9201-9456

1,5,15

 D

Word element

D0-D4095

0001-4096

3,6,16

 SD

Word element

 SD0-SD511

8001-8512

3,6,16

 T

Word element

 T0-T255

9001-9256

3,6,16

 C

Word element

 C0-C199

9501-9700

3,6,16

 C

Word element

 C200-C255

 9701-9256

3,16





































           Download File

PLC6462 Instructions.pdf

Download

Correspondence diagram of controller wiring diagram

Download
