Functional Description:
Functional Description: I15-1031 is a new generation of WEB HMI based on HTML5 specification independently developed by Sunfull ,which can realize the on-site data monitoring and directly transform to the configuration screen for real-time data monitoring. It has the characteristic of easy operation of general configuration In addition, touch screen configuration software can run on the embedded system. Compared to other configuration software, the biggest highlight is completely based WEB development, a user-created configuration project, can be downloaded to run on the touch screen、 Telephone、IPad or PC can be accessed through a browser ,and the open data interface is integrated by third-party systems。
Application field: I15-1031 supports conversion to standard BACnet servers and Modbus servers.It is applied to Building Automatic Control system or industrial field to connect some uncommon control equipments,such as PLC,DDC,UPS,central air conditioner,elevator,fire control system,light control system,electricity meter, water meter,etc. This allows users to monitor on-site devices via WEB HMI I15-1031 or mobile phone ,iPAD,or PC.
Runtime environment:
OS：Win 7/Win8/Win10/Win Server 2003/Win Server2008 etc.
Browser： IE9(and above) 、Safari、Google Chrome、firefox、Opera etc.

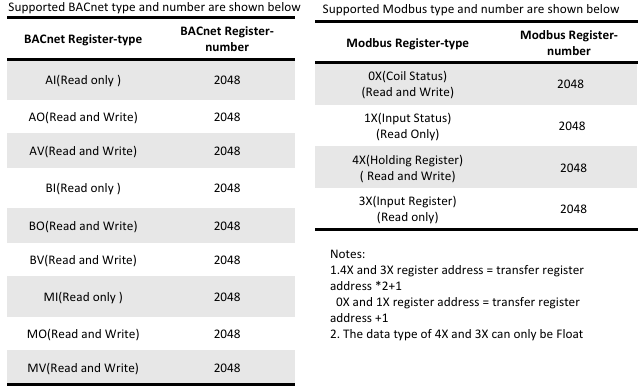

Register Type&Num
Number of Register is dynamic, each register can be built up to 2048 points.
|
|
Software Features: |
|
|
- Support both local and cloud configuration for remote data monitoring; |
|
|
- HTML5 configuration pages meet the customization needs of different customers; |
|
- Support MQTT services and project uploads to the cloud; |
|
- Support Graphic programming, JS and PLC hybrid programming, schedule-based control, triggers, user management, and user permissions; |
|
- Support convert 500+ protocols to Modbus, BACnet, OPC UA and MQTT server; |
| - Support sending alarms via WeChat, SMS platform, DingTalk, Email, FeiShu, Telegram, Viber, and LINE; |
|
- Support storage in external databases such as MySQL, SQL Server, and InfluxDB; |
|
- Supports historical data storage, real-time curves, pie charts, and ring charts for data visualization; |
|
- Support local storage for the InfluxDB time series database; |
|
|
- Allows integration with third-party systems through HTTP Web services.
|
|
|
|
|
|
|
Application Principle Diagram |
|
Product Size
If you need to develop a non-standard protocol , please contact us.
If it is best to express the device to our company, the development cycle is usually 2 weeks.
