Product Model:RT5001-WiFi-4G
Functional Description:
1.Remote networking
Support VPN-based remote networking for secure PLC/HMI program upload/download and remote desktop maintenance, significantly enhancing engineers' remote maintenance efficiency. The RT5001-WiFi-4G variant retains all WiFi-version functionalities with added 4G connectivity.
WAN Port: Default 192.168.1.88
LAN Port: Default192.168.10.1
Username/Password: admin / admin123456
2.Simplified HMI Gateway Functionality:
Gateway-type remote networking router supports acquisition of Modbus RTU/TCP, BACnet IP, OPC UA, Siemens S7 protocols, and converts them to standardized BACnet IP, Modbus TCP, and MQTT servers. Configuration is performed via X2View software.
Users can map existing device point tables to standardized BACnet IP/Modbus RTU/TCP formats, upload configurations to the hardware gateway, enabling BACnet/Modbus clients to access field device data through the gateway.
Note: the Modbus register on the acquisition side of the gateway starts from 1 (Base1) in decimal and 0 (Base0) in hexadecimal. The base address of the Modbus register on the forwarding side is always from 1 (Base1).
Application Fields:
Used in building automation systems or industrial fields to solve the problem of integrating non-BACnet equipment with Johnson Metasys, Horney EBI or Niagara, Siemens Insight or Desigo CC, Schneider EBO and other building control configuration software;
At the same time solve Citect, IFIX, RSVIEW, WinCC, Kingview, force control and other configuration software through the Modbus TCP protocol integrated serial devices, such as PLC, DDC, thermostat, elevator, air conditioning, UPS, fire, intelligent lighting, electricity meters, water meters and so on.
Operating Environment:
X2View configuration software supports various operating systems, including Win7, Win8, Win10, Win11, Win Server 2008, and Win Server 2016.
The hardware gateway has a built-in WEB server and supports browsers such as Google Chrome, Microsoft Edge, Apple Safari, Mozilla Firefox, Opera, and 360 Speed Mode.
Supported Register Types and Quantities
Note: The number of register points is dynamically supported, with a total limit of up to 256 points.
The BACnet/Modbus register types and maximum number of points supported are shown in the table below.
|
BACnet Register Module |
BACnet Register Number |
|
AI(Read only no writing) |
256 |
|
AO(Read and Write) |
256 |
|
AV(Read and Write) |
256 |
|
BI(Read only no writing) |
256 |
|
BO(Read and Write) |
256 |
|
BV(Read and Write) |
256 |
|
MSI(Read only no writing) |
256 |
|
MSO(Read and Write) |
256 |
|
MSV(Read and Write) |
256 |
|
Modbus Register Module |
Modbus Register Number |
|
0X(Coil Status)(Read and Write) |
256 |
|
1X(Input Status)(Read only no writing) |
256 |
|
4X(Holding Register)(Read and Write) |
256 |
|
3X(Input Register)(Read only no writing) |
256 |
Notes:
4X and 3X register address = transfer register address *2+1
0X and 1X register address = transfer register address +1
|
Software Features: |
| - Support VPN-based remote networking for PLC/HMI program upload/download and remote desktop maintenance; |
|
- Support convert Modbus, BACnet IP, OPC UA, Siemens S7 protocols to BACnet IP, Modbus TCP, MQTT server; |
| - Support Graphic programming, JS and PLC hybrid programming, schedule-based control, triggers, user management, and user permissions; |
|
| - Support checking the online/offline status of devices； |
| - Support Web browsing for real-time data viewing; |
| - Configuration software X2View configuration engineering is convenient. |
|
|
|
|
|
Hardware Parameters: |
|
| OS: Linux |
Power Supply: AC/DC 12~48V |
| CPU: 580 MHz |
Dimensions (L×W×H): 148.5mm*107.5mm*31.5mm |
| RAM: 128 M |
Weight: 400g |
|
Flash: 32M |
Material: Galvanized Steel |
|
Power: 6W |
Installation: DIN-Rail/Wall-mounted |
|
Serial Ports:1xRS485(Electromagnetic isolation) |
WAN Port: 1×10/100Base-TX auto-negotiating port |
| WiFi Interface: Support WiFi 5 (downward compatible) |
LAN Port: 4×10/100Base-TX auto-negotiating ports |
| Antenna: 2×external removable 2.4GHz antennas |
SIM Card Slot: 1×SIM card slot with built-in 4G module |
Temperature:-20℃ ~ +70°C (working)
-40°C ~ +85°C (storage and transportation) |
Humidity:20％～90％ no condensation (working) 15％～95％ no condensation (storage andtransportation) |
| |
|
|
Application Principle

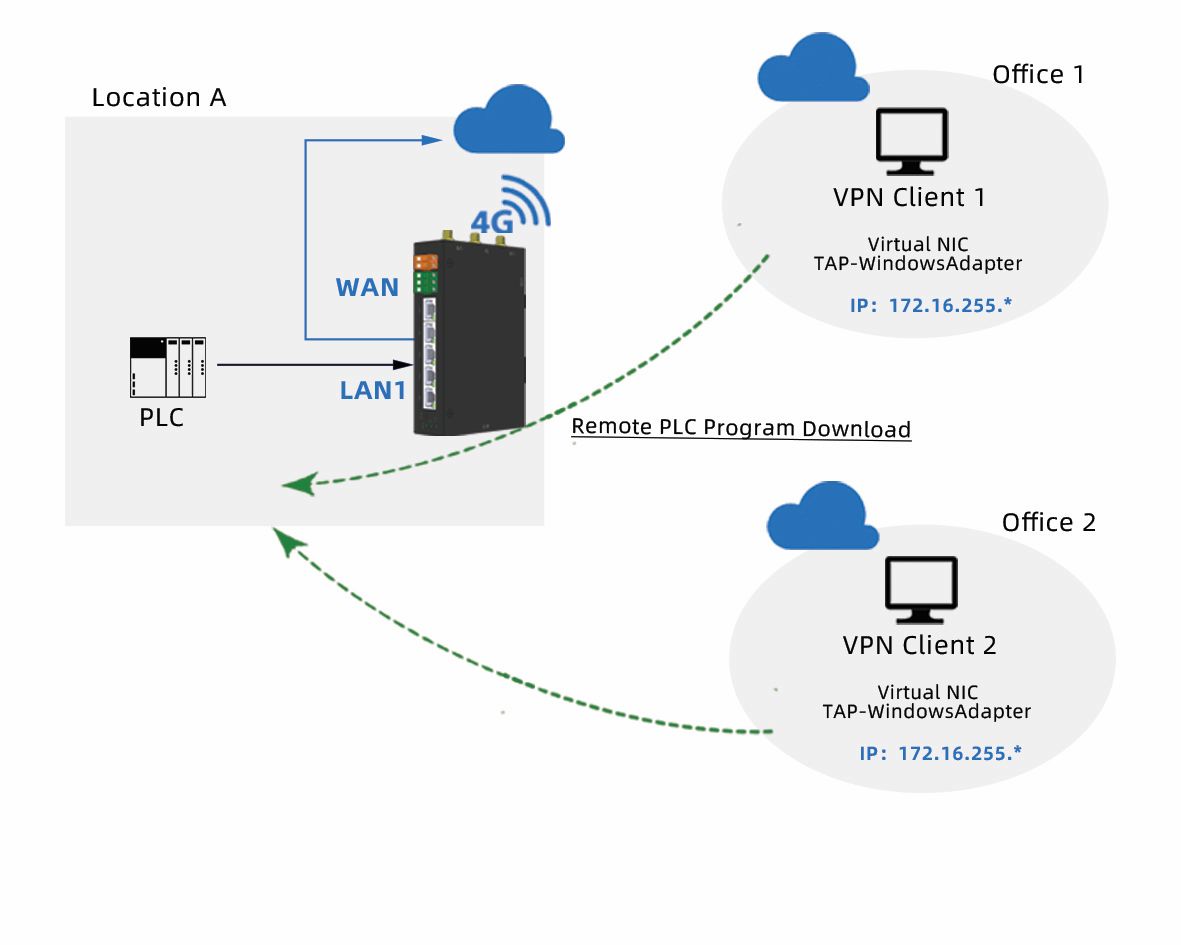

Application 1:Remote PLC Program Download

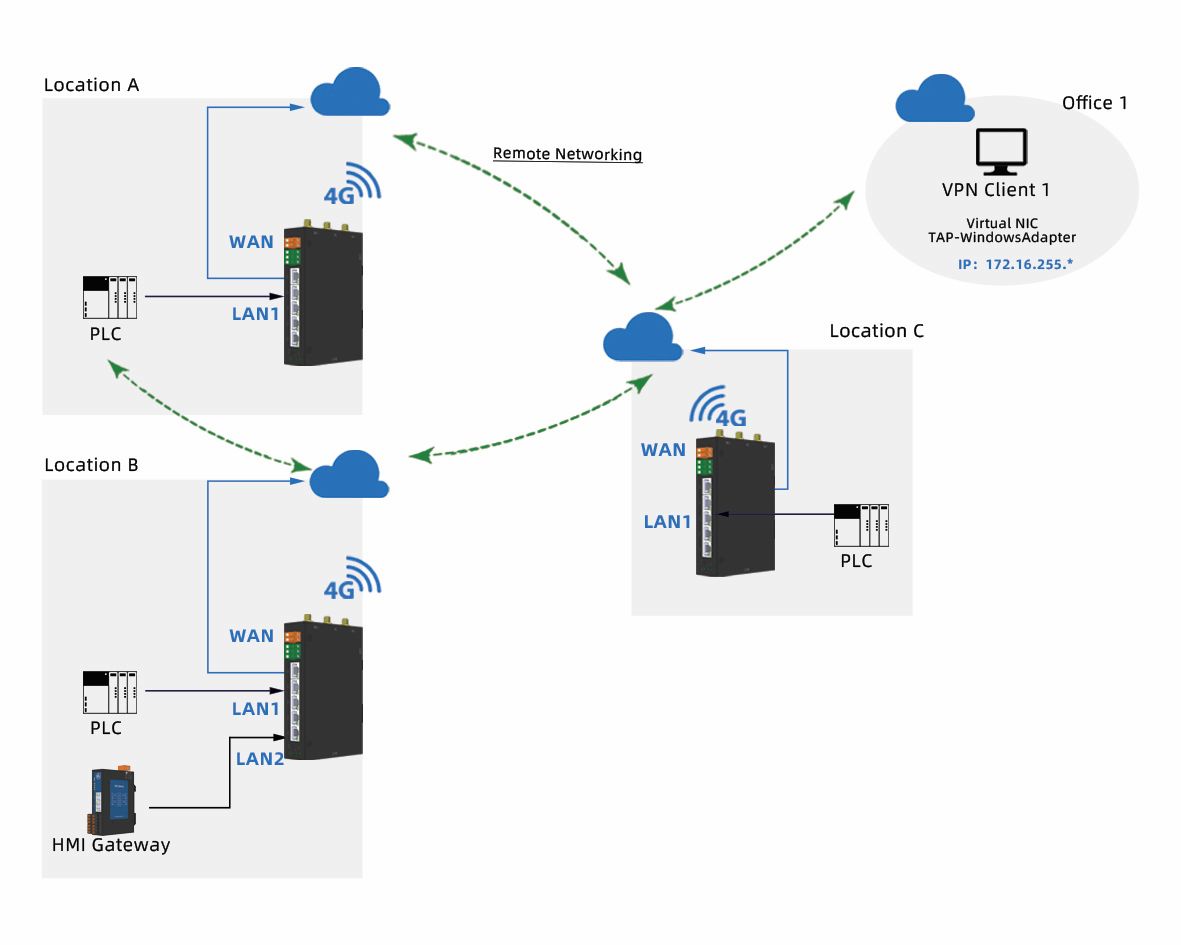

Application 2:Remote Networking

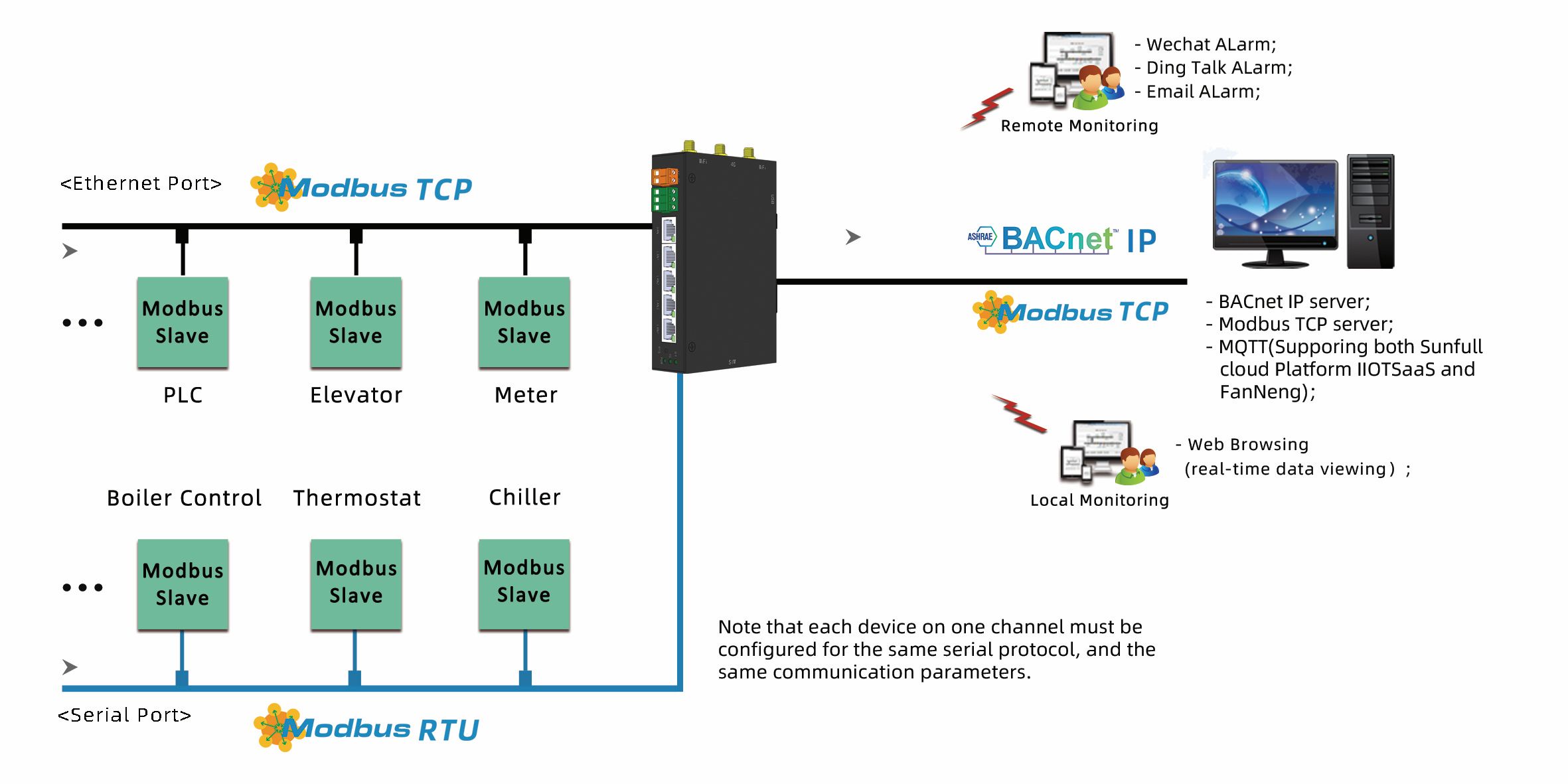

Application 3:Functioning as a Standard IOT Gateway
Product Dimensions
|
Related information |
下载 |
|
Product manual |
下载 |
|
RT5001 NAT Mapping Function Description |
下载 |
|
RT5001 PLCInstructions for transparent download operation |
下载 |
|
Support Protocols List |
下载 |
|
CommunicationManual |
下载 |
|
X2View Configuration Software |
下载 |
If you need to develop a non-standard protocol , please contact us.
If it is best to express the device to our company, the development cycle is usually 2 weeks.
